In this article, we will take an in-depth look at surface finishing standards in injection molding, focusing on the SPI (Society of the Plastics Industry) standards, their application, and how to choose the right finish for your specific needs. We will also explore how these standards influence the production process, the materials used, and the overall quality of the final product.



What are Surface Finishing Standards?
In any manufacturing process, consistency is crucial. Surface finish standards help injection molders and customers align their expectations regarding the appearance and performance of molded parts. A uniform standard ensures that when a designer specifies a particular finish, the molder can reliably replicate it, regardless of the material used or the production location.

Surface finish standards are especially important in industries where the product's appearance is a critical factor. For example, in consumer goods, a high-gloss finish may be required for premium aesthetics, while in automotive interiors, a fine texture might be necessary to reduce glare or improve grip.


Overview of SPI Surface Finish Standards

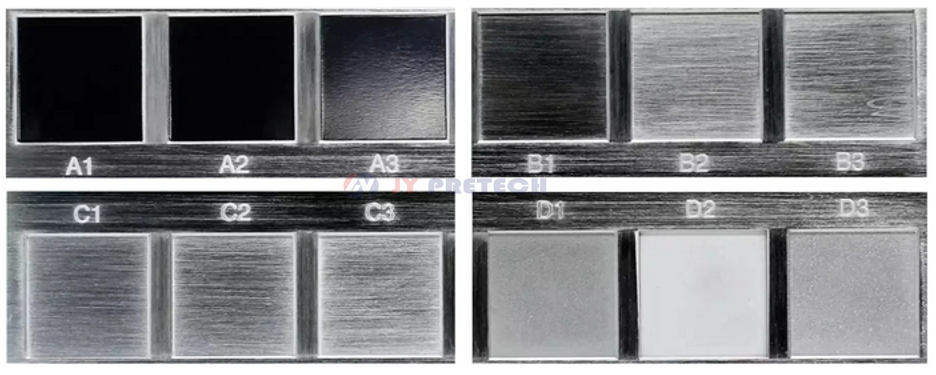

The SPI finish standards, established by the Society of the Plastics Industry (now known as the Plastics Industry Association), are among the most widely recognized in the injection molding industry. These standards classify surface finishes into four categories: A, B, C, and D, with each category further subdivided based on the level of polish or texture required.

 - 1. A-Grade Finishes (High Polish)
D-grade finishes are heavily textured surfaces achieved through methods such as grit blasting or chemical etching. These      finishes are primarily functional, used for parts that require texture for grip, to conceal imperfections, or to enhance the part's  appearance. They are commonly used in automotive interiors, consumer electronics, and sports equipment.
    - D-1: A fine-textured finish created using a fine abrasive blast. This finish provides a subtle texture, often used for ergonomic parts where grip and comfort are essential.
    - D-2: A medium-textured finish that offers a more pronounced texture, suitable for parts that need to mask wear and tear or fingerprints.
    - D-3: A heavy-textured finish created through coarse blasting or etching. It is used for parts requiring high levels of grip or where aesthetics are less critical.


How to Choose the Right Surface Finish
When selecting a surface finish for an injection-molded part, several factors come into play:

1. Functionality: Does the part need to be smooth or textured? For instance, high-gloss finishes may be required for aesthetic purposes, while textured finishes are necessary for parts that need grip or friction.

2. Material: Different plastic resins respond differently to surface finishes. Some materials, like ABS, are easier to polish to a high gloss, while others, like polypropylene, may not take polish as well and are better suited for textured finishes.

3. Cost: A-grade finishes require more time and labor due to the high level of polishing involved, making them more expensive. Textured finishes, although often faster to produce, may still incur additional costs for etching or blasting.

4. Tooling Considerations: The choice of surface finish can also impact the tool or mold design. A high-gloss finish may require a highly polished mold, which can increase mold fabrication time and costs.

5. End-Use Application: Industries such as automotive and medical devices have stringent requirements for part aesthetics and functionality. For example, automotive interiors may use textured finishes to reduce glare and enhance aesthetics, while medical devices may require smooth surfaces for hygiene and easy cleaning.


Impacts of Surface Finish on Molded Parts
The surface finish of a mold significantly impacts the final product. For example, a glossy finish can highlight imperfections such as sink marks or weld lines, which can reduce the perceived quality of the part. In contrast, a textured finish can conceal these defects, making it a preferred choice for parts where appearance is important but budget constraints limit the ability to achieve a flawless surface.

The right surface finish can also enhance the product's functionality. For instance, a textured grip on a handle can improve usability, while a smooth, polished surface may be easier to clean in medical applications.


Conclusion
Surface finishing standards in injection molding are essential for achieving consistent, high-quality parts that meet both functional and aesthetic requirements. The SPI standards offer a clear and easy-to-understand framework for classifying finishes, ranging from high-gloss mirror surfaces to heavily textured, functional parts.
